0.5-1T/h Insuatrial Diesel Oil Fired Steam Boiler
Diesel Oil Fired Steam Boiler introduction
★ 0.5-1T/h Insuatrial Diesel Oil Fired Steam Boiler ,it is fuelled by dieael oil,natural gas ,LPG and so on.
★ Imported burner or low nitrogen burner. Adopts German high quality pressure gauge .
★ Built-in efficient soda separation device.Horizontal furnace structure,
★ Schneider main electric appliance.
★ LCD display controller, can display the running status, fault alarm, type and other parameters.
★ Optional all-premixed surface burner; Low nitrogen 30 mg; Optional Siemens PLC controller.
★ The steam capacity gas fired steam generator boiler can be exempted from inspection;
★ Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation.
Diesel Oil Fired Steam Boiler Parameter
| WQ Vertical Oil(gas)Fired Steam Boiler |
| Type | WQ-500 | WQ-500LX | WQ-1000 | WQ-1000LX |
| Project | Unit |
| Rated evaporation | kg/h | 500 | 1000 | 500 | 1000 |
| Rated working pressure | MPa | 0.8 | 0.8 | 0.8 | 0.8 |
| Staturated steam temperature | ℃ | 174 | 174 | 174 | 174 |
| Fuel consumption | Light diesel oil | kg/h | 38 | 38 | 75 | 75 |
| Natural gas | Nm³/h | 15 | 15 | 30 | 30 |
| a Main steam valve diameter | DN | 40 | 40 | 50 | 50 |
| b Safety valve diameter | DN | 50 | 50 | 50*2 | 50*2 |
| c Inlet diamater | DN | 25 | 25 | 25 | 25 |
| d Blowoff Valve diameter | DN | 25 | 25 | 25 | 25 |
| e Chimney diameter | DN | 250 | 250 | 250 | 250 |
| Overall size | L | mm | 3000 | 3000 | 3600 | 3600 |
| W | mm | 1450 | 1450 | 1800 | 1800 |
| H | mm | 2200 | 2200 | 2200 | 2200 |
| Weight | kg | 1800 | 1800 | 2900 | 2900 |
Diesel Oil Fired Steam Boiler Advantage
- Vertical structure, save room space and easily installation.
- Adopts German high quality pressure gauge
- Imported burner or low nitrogen burner.
- Multiple chain protection
- Full combustion, low energy consumption
- Environmentally friendly boiler, Safety and energy saving.

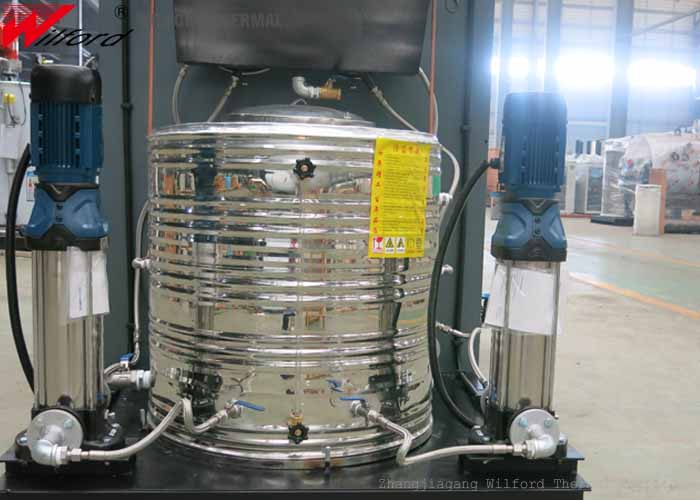

Diesel Oil Fired Steam Boiler picture
Application Scope
- It is widely used in hospitals, schools, textile mills, garment factories, clothing supermarkets, garment factories, dry cleaners, restaurants.
- Hotels, restaurants, hotels, canteens, restaurants, food factories, beverage factories, soy products factories, canneries, wineries.
- Pharmaceutical factory, packaging factory, building material factory, paint factory, beauty salon, bath center, sauna, steam room, baby swimming pool, etc.
After - sales service
- Provide on-site reconnaissance and guide the installation.
- commissioning and personnel training
- A big team in responsible for the after-sale service and is always at customers’ service.
- We will supply after service 24 hours,customer can contact us any time.
