Mini Industrial Electric Steam Boiler 750 - 1000 KG/H Electromechanical Separate Installation

  • 1
  • 2

Brand Name : WILFORD

Model Number : WDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 25 stand/stands per Month

Delivery Time : 15-20 work days

Packaging Details : Packing in wooden box

Rated evaporation : 750-1000kg/h

Rated working pressure : 1.0MPa

Model number : WDR industry steam boiler

After-sales Service Provided : Engineers available to service machinery overseas

Temperature : 184-193 Degree

Safe : Yes

Contact Now





750 - 1000KG / H Mini Industrial Electric Steam Boiler For Sale





Product introduction



  •  As a high-power steam boiler, it has a large water capacity, a large steam space, a large amount of steam and good quality.



  • The quality of the electric heating tube, electrical components and heating elements selected by it is very good, which greatly prolongs the service life of the equipment.



  • Because the electrical components are easily aged by heat, the furnace body and the control cabinet are separately installed.



  • The boiler has achieved full automation control during the operation, which is simple and quick, thus avoiding human error.



  • Horizontal structure, complete safety equipment, beautiful packaging, simple installation and convenient transportation.





Parameter



Type   WDR0.75 WDR1 WDR1.5 WDR2 WDR3 WDR4
Project Unit
Rated evaporation t/h 0.75 1 1.5 2 3 4
Rated working pressure MPa 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25 1.0/1.25
Staturated steam temperature ℃ 184/193 184/193 184/193 184/193 184/193 184/193
Input Power KW 540 720 1080 1440 2160 2880
Input current A 810 1080 1620 2160 3240 4320
Rated pressure V 3N AC 50Hz 380V
Power×Group KW×P 36×15 36×20 36×30 36×40 36×60 36×80
Dimension
a Main steam valve diameter DN 40 40 65 65 80 100
b Safety valve diameter DN 2×40 2×40 2×40 2×40 2×40 2×50
c Inlet diamater DN 25 25 25 25 40 40
d Blowoff Valve diameter DN 40 40 40 40 40 40
Overall size L mm 2800 2950 3450 3500 3950 4100
L1 mm 2400 2500 3050 2880 3200 3550
W mm 1800 1900 2180 2000 2100 2300
W1 mm 1550 1600 1430 1880 1980 2120
H mm 1550 1600 2100 2500 2650 2980
H1 mm 1300 1350 1850 1900 2100 2200
Electrical control cabinet size ALength mm 1200 1200 1500 2200 2000(2) 2200(2)
BWidth mm 500 600 600 700 700 700
CHight mm 1800 1800 2000 2000 2200 2200
Weight T 1.6/2.0 1.8/2.2 2.2/2.7 2.8/3.3 3.5/4.1 4.5/5.2





Advantage



1 . Electrical components use first-line brand


2 . Electromechanical separate installation


3 . The heating element is brazed


4 . Large steam space


5 . Built-in PID design pressure control method

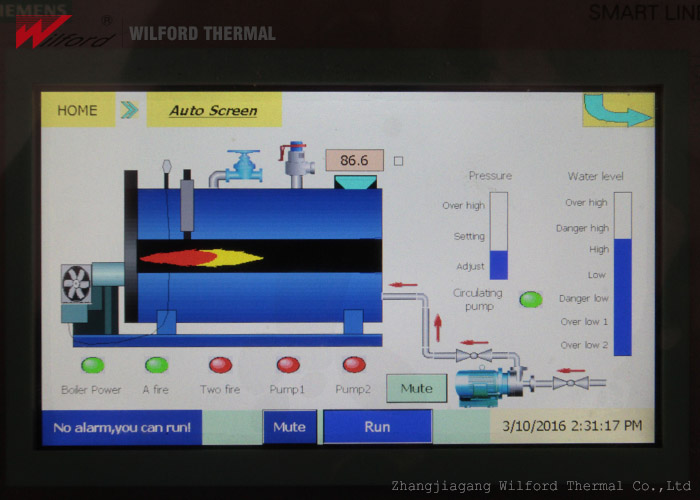

6 . Implement man-machine interface, remote control





Product picture



Mini Industrial Electric Steam Boiler 750 - 1000 KG/H Electromechanical Separate Installation

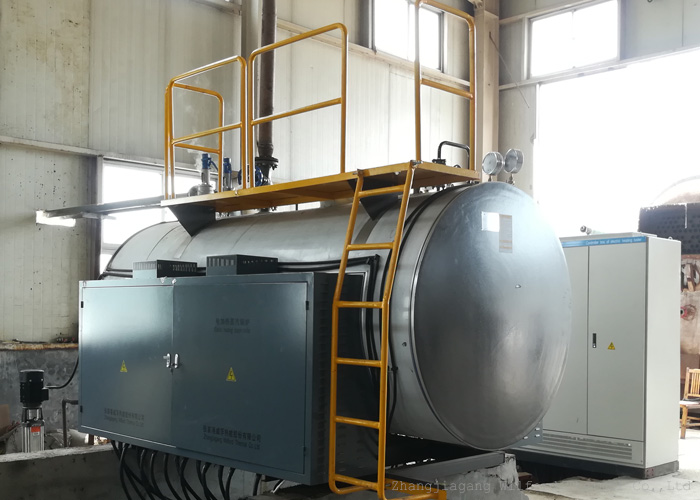

Project case diagram



Mini Industrial Electric Steam Boiler 750 - 1000 KG/H Electromechanical Separate Installation
